Price From

$ 379,000

Power

35kW at 8500 r/min

Max. Torque

46N·m/6000 r/min

Dry Weight (KG)

210

Tech Specs

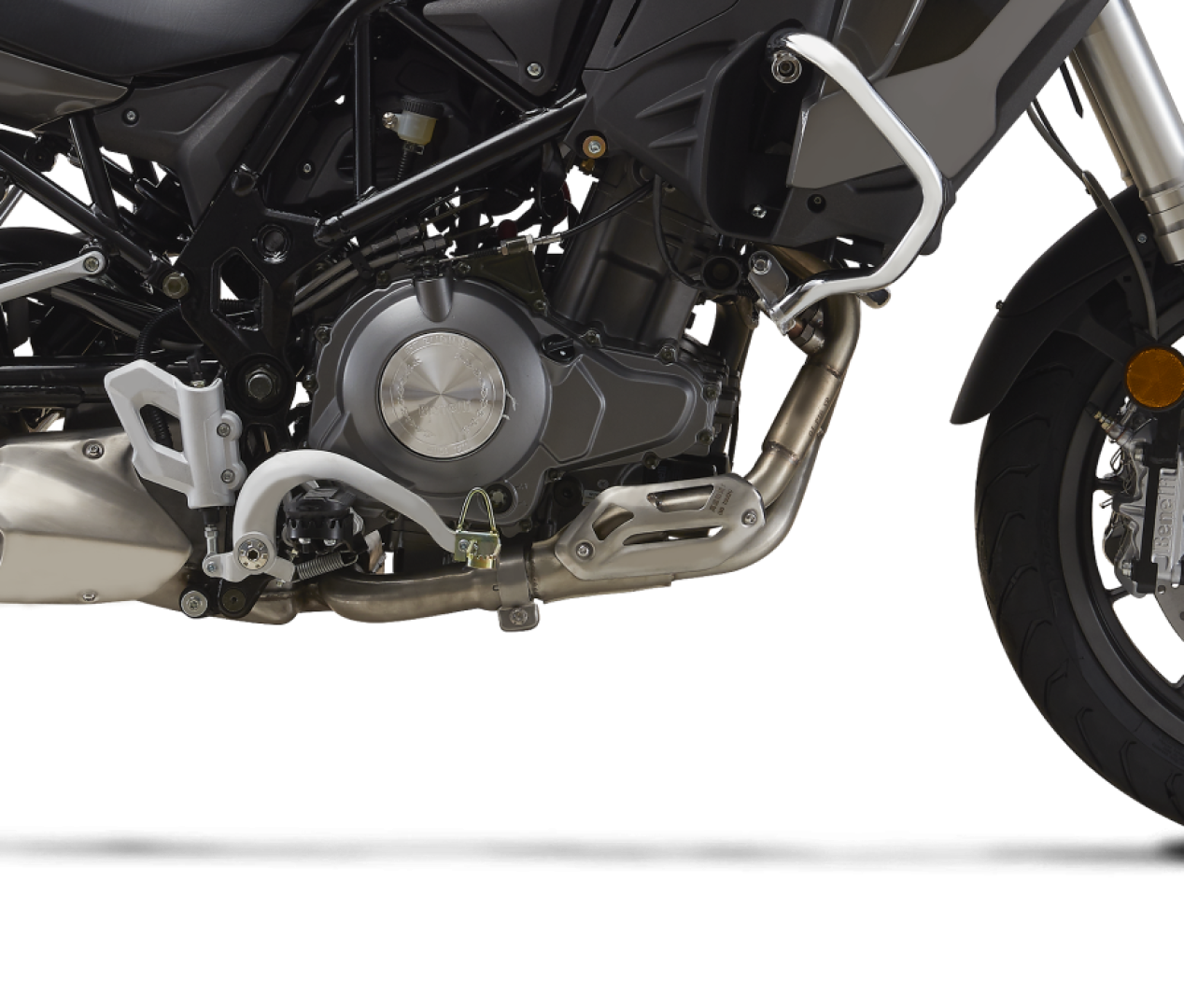

  • TYPE

    2-cylinder/4-stroke/8-valve

    Displacement (cc)

    500

    Bore x Stroke (mm)

    ø69×66.8

    Power

    35kW at 8500 r/min

    Max torque

    46N·m/6000 r/min

    Compression ratio

    11.5:1

    Fuel system

    EFI

    Valve train

    DOHC

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Liquid-cooled

    Ignition

    T.C.I.

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

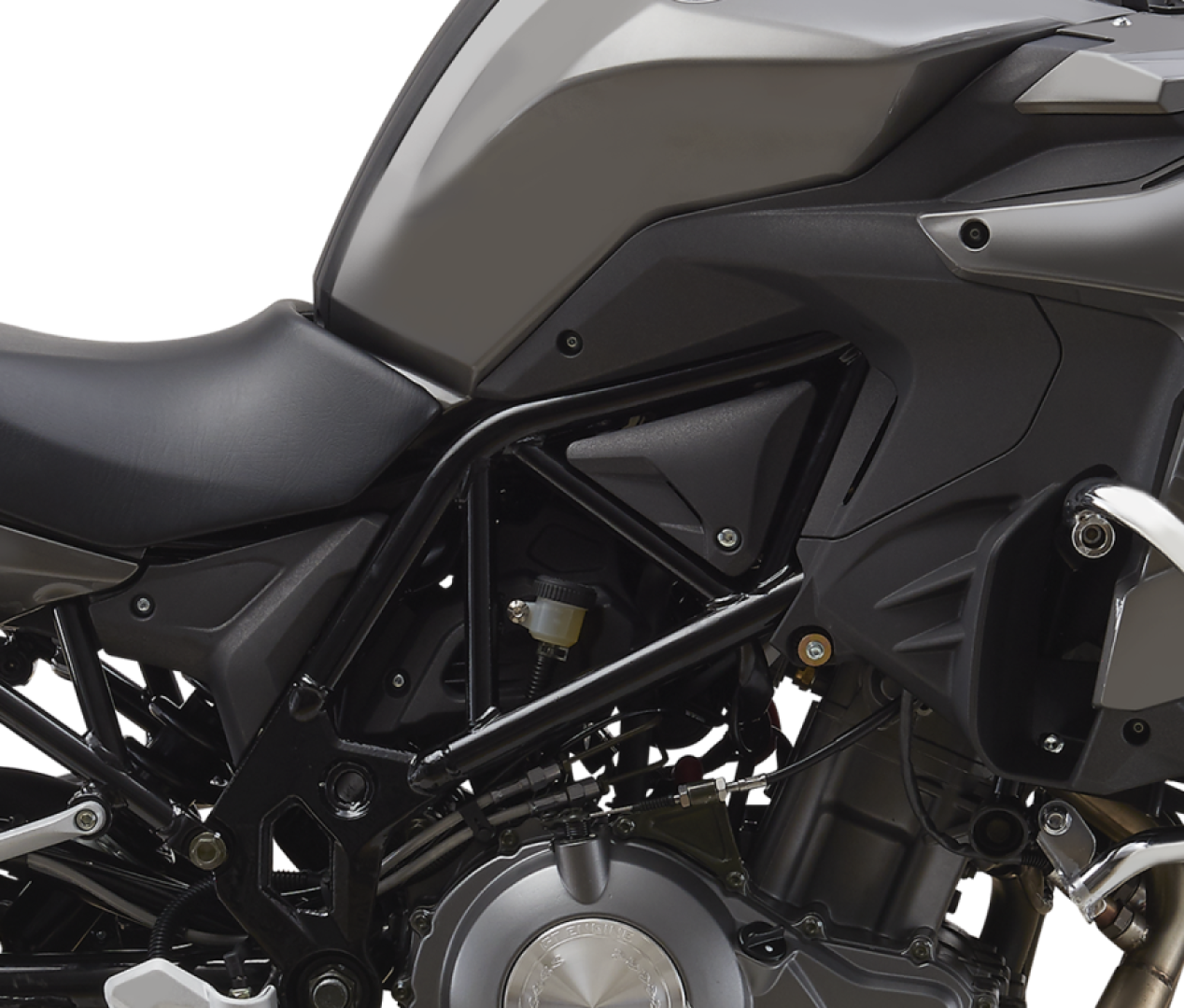

  • Frame

    Steel trellis frame

    Front wheel

    Aluminum alloy

    Front suspension travel (mm)

    140

    Front tyre

    120/70 ZR17

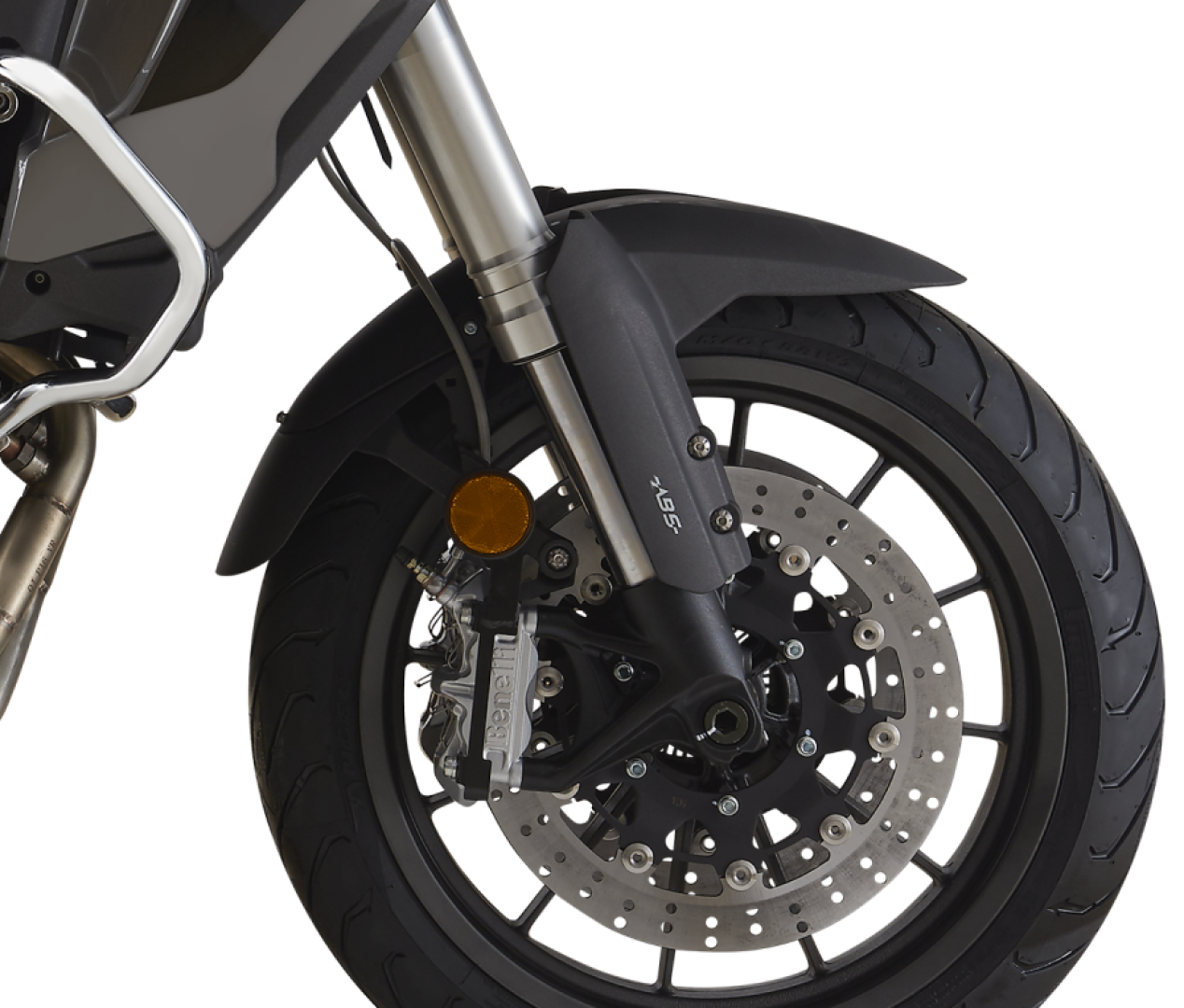

    Front brake

    Dual discs

    Front brake diameter (mm)

    320

    Rear wheel

    Aluminum alloy

    Rear suspension

    Mono-shock-absorber

    Rear suspension travel (mm)

    45

    Rear tyre

    160/60 ZR17

    Rear brake

    Disc

    Rear brake diameter (mm)

    260

  • Dry weight (kg)

    210

    Seat height (mm)

    835

    Overall length (mm)

    2200

    Overall width (mm)

    915

    Overall height (mm)

    1450

    Ground clearance (mm)

    190

    Wheelbase (mm)

    1505

    Fuel capacity (L)

    20

    Top speed (km/h)

    165

    Max load (kg)

    175

    Battery

    12V8Ah
