Price From

N/A

Power

6.3kW at 7500 r/min

Max. Torque

9.2N·m/6000 r/min

Dry Weight (KG)

N/A

Tech Specs

  • TYPE

    1-cylinder/4-stroke/2-valve

    Displacement (cc)

    124

    Bore x Stroke (mm)

    ø53.5×55

    Power

    6.3kW at 7500 r/min

    Max torque

    9.2N·m/6000 r/min

    Compression ratio

    9.0:1

    Fuel system

    EFI

    Valve train

    SOHC

    Starter

    Electric & kick

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Forced-air-cooled

    Ignition

    T.C.I.

  • Gearbox

    CVT

    Final drive

    V-belt

    Clutch type

    Automatic

  • Frame

    Flat scooter

    Front wheel

    Aluminum alloy

    Front suspension

    Telescopic forks

    Front suspension travel (mm)

    72

    Front tyre

    100/90-12

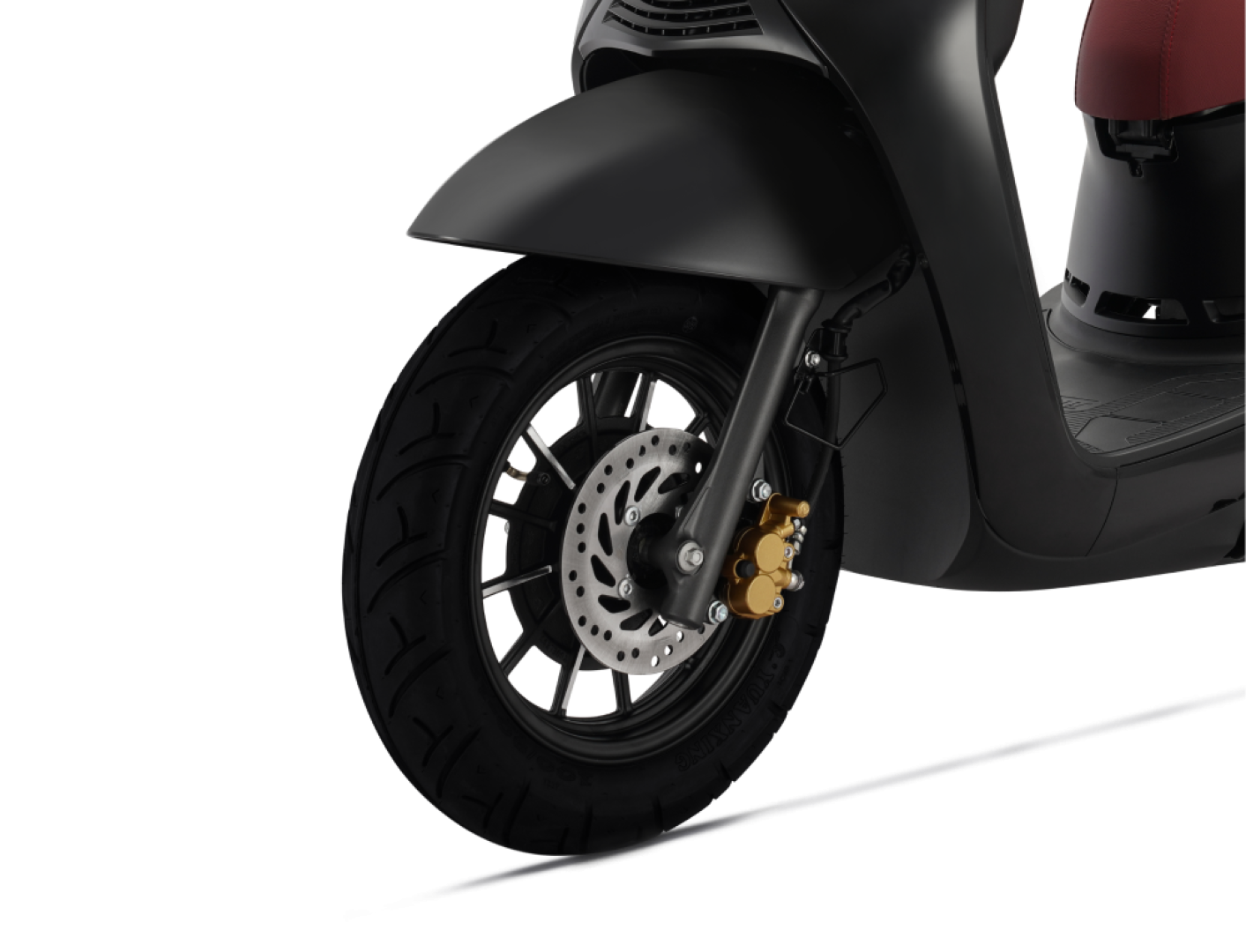

    Front brake

    Disc, 2-piston caliper

    Front brake diameter (mm)

    190

    Rear wheel

    Aluminum alloy

    Rear suspension

    Mono-shock-absorber, preload adjustable

    Rear suspension travel (mm)

    72

    Rear tyre

    110/90-12

    Rear brake

    Drum

    Rear brake diameter (mm)

    130

  • Seat height (mm)

    760

    Overall length (mm)

    1820

    Overall width (mm)

    690

    Overall height (mm)

    1090

    Ground clearance (mm)

    135

    Wheelbase (mm)

    1270

    Fuel capacity (L)

    4.6

    Top speed (km/h)

    90

    Max load (kg)

    160

    Battery

    12V6Ah
