Price From

N/A

Power

19kW at 9250 r/min

Max. Torque

21.2N·m/8000 r/min

Dry Weight (KG)

153

Tech Specs

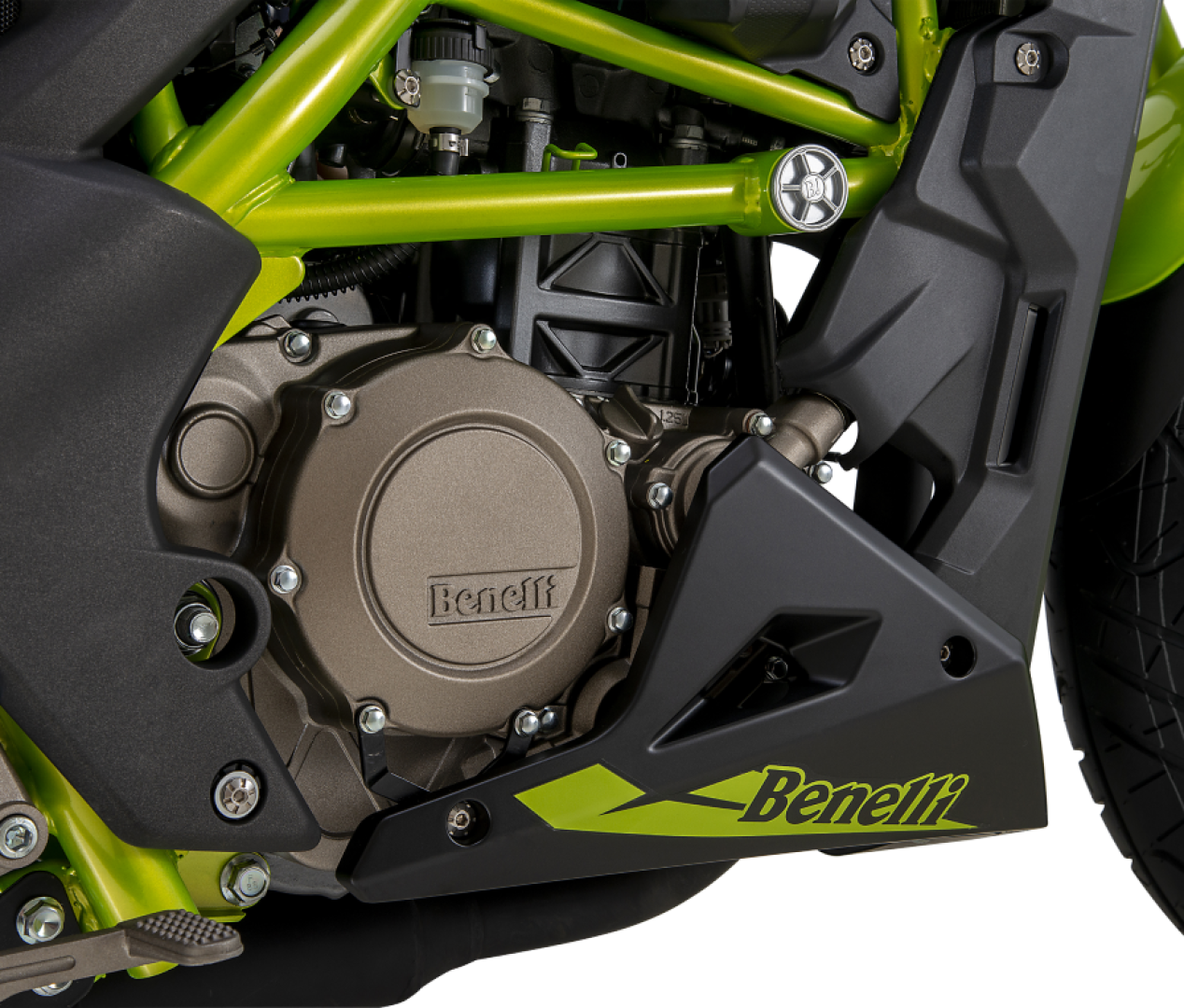

  • TYPE

    1-cylinder/4-stroke/4-valve

    Displacement (cc)

    249

    Bore x Stroke (mm)

    ø72×61.2

    Power

    19kW at 9250 r/min

    Max torque

    21.2N·m/8000 r/min

    Compression ratio

    11.2:1

    Fuel system

    EFI

    Valve train

    DOHC

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Liquid-cooled

    Ignition

    T.C.I.

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Steel trellis frame

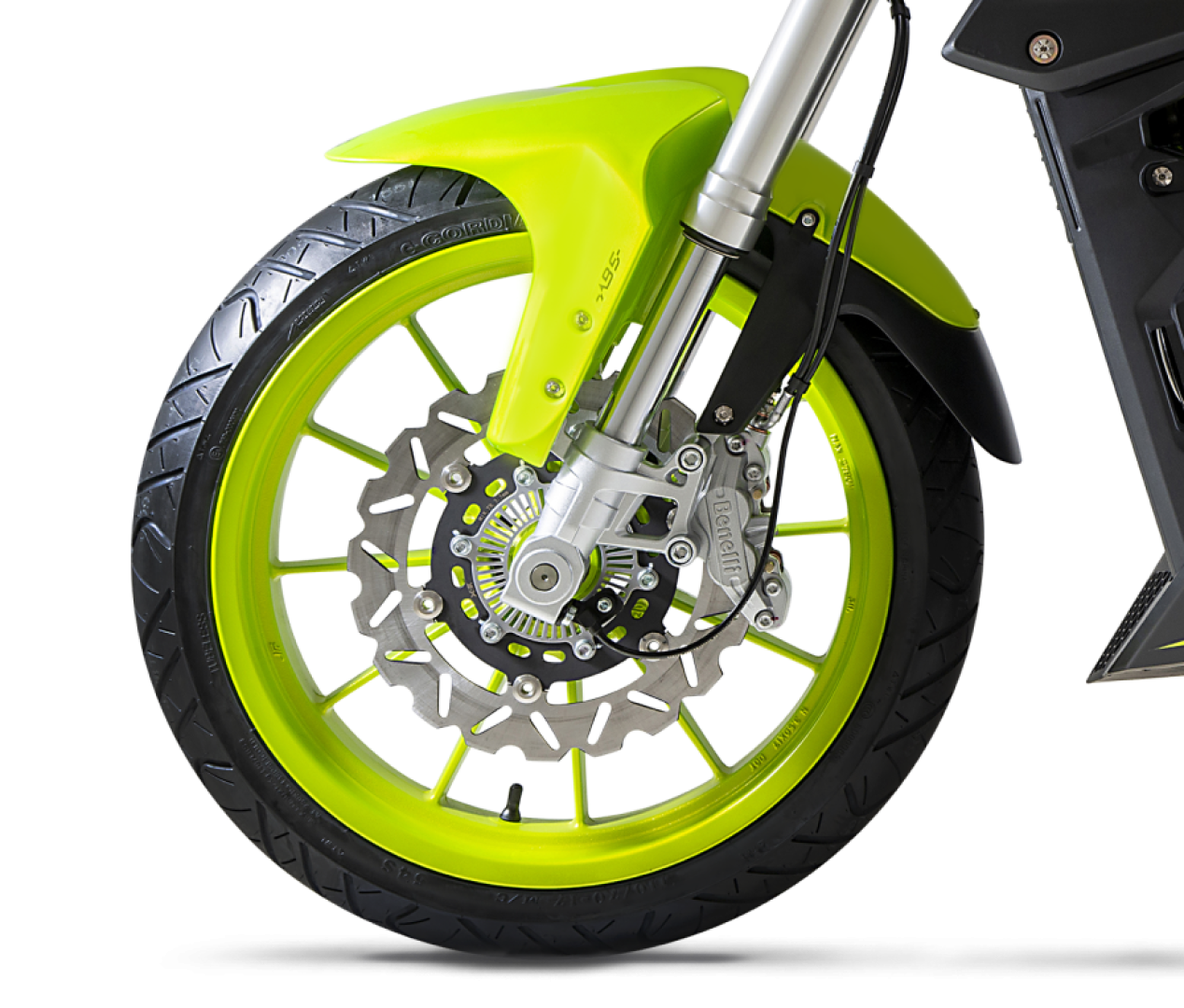

    Front wheel

    Aluminum alloy

    Front suspension travel (mm)

    120

    Front tyre

    Metzeler 110/70 R17

    Front brake

    Disc with ABS

    Front brake diameter (mm)

    280

    Rear wheel

    Aluminum alloy

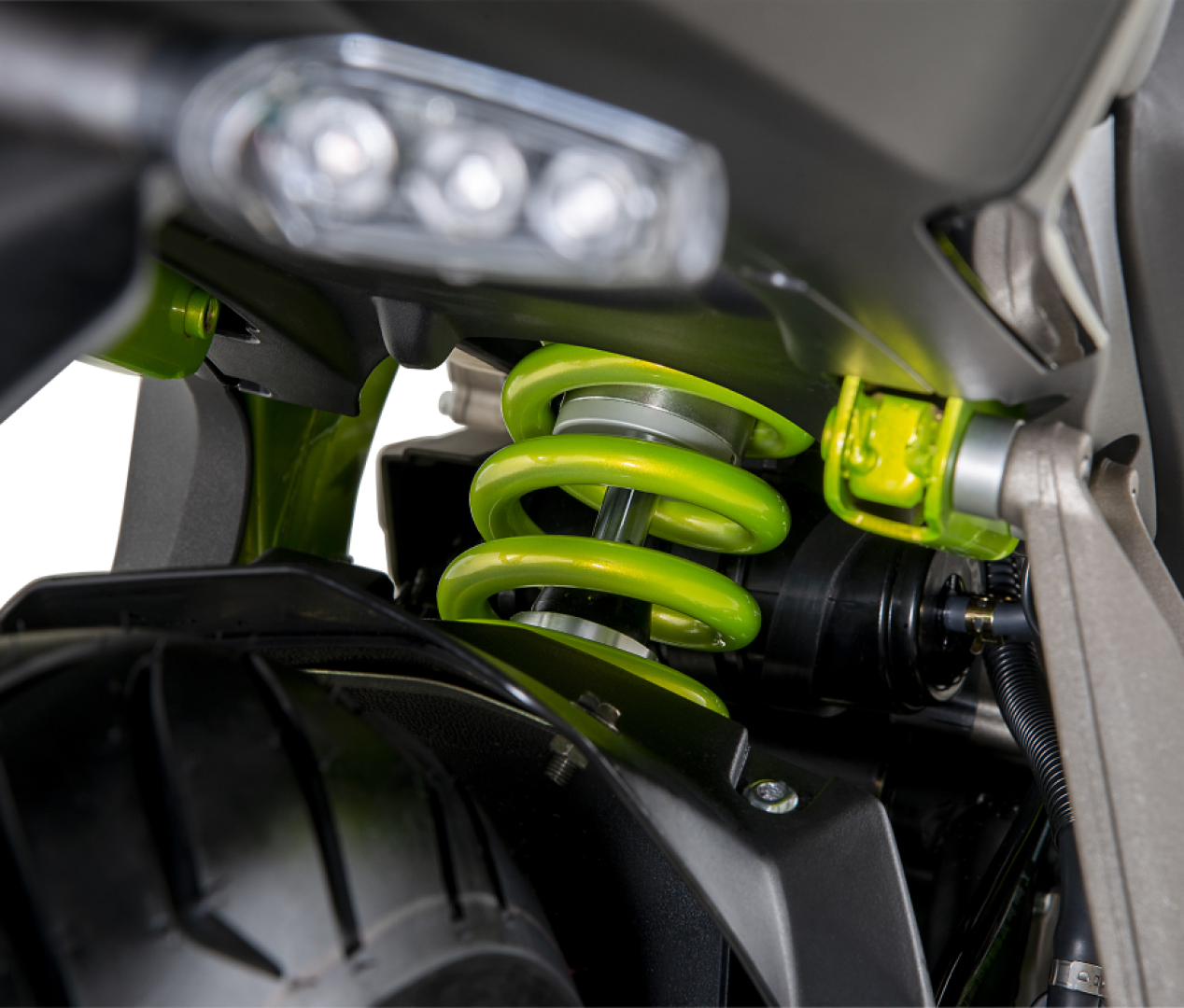

    Rear suspension

    Mono-shock-absorber, preload adjustable

    Rear suspension travel (mm)

    51

    Rear tyre

    Metzeler 150/60 R17

    Rear brake

    Disc with ABS

    Rear brake diameter (mm)

    240

  • Dry weight (kg)

    153

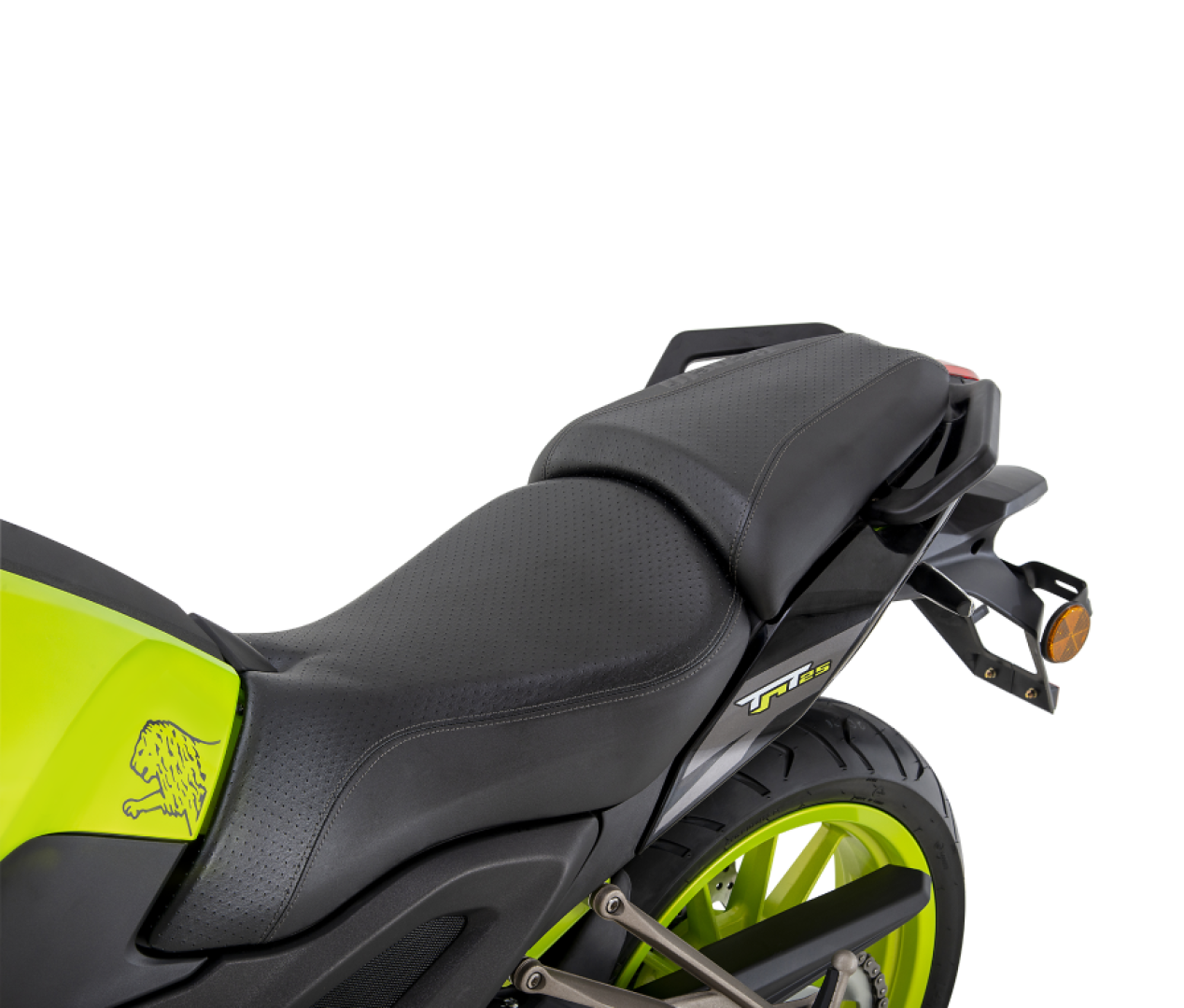

    Seat height (mm)

    810

    Overall length (mm)

    2040

    Overall width (mm)

    810

    Overall height (mm)

    1110

    Ground clearance (mm)

    180

    Wheelbase (mm)

    1400

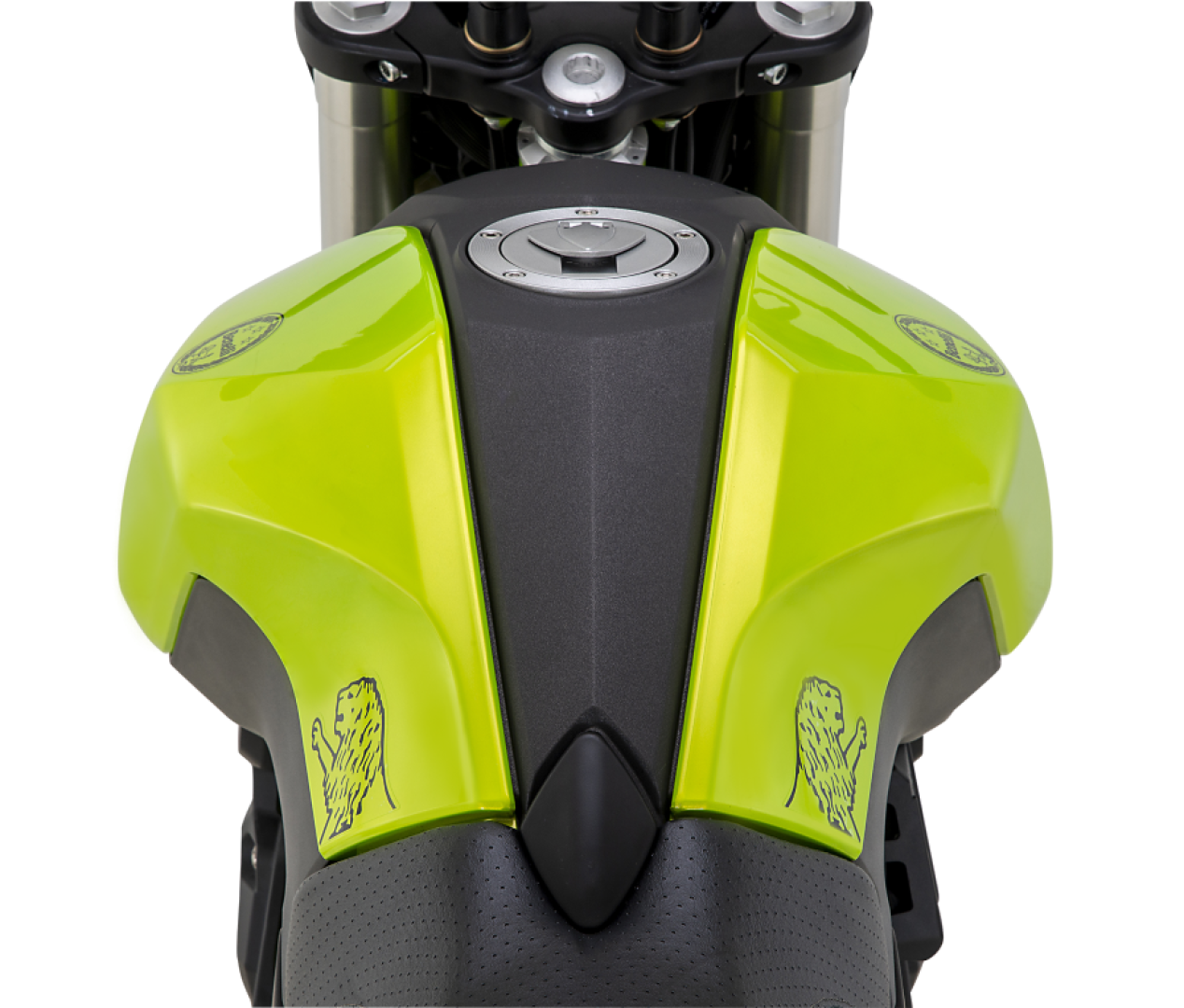

    Fuel capacity (L)

    17

    Top speed (km/h)

    129

    Max load (kg)

    190

    Battery

    12V6Ah
