Prezzo (f.c.)

N/A

Potenza Massima

9.8kW at 9000 r/min

COPPIA MASSIMA

12.5N·m/7000 r/min

Peso a secco (KG)

147

Specifiche tecniche

  • TYPE

    1-cylinder/4-stroke/4-valve

    Displacement (cc)

    150

    Bore x Stroke (mm)

    ø57×58.7

    Power

    9.8kW at 9000 r/min

    Max torque

    12.5N·m/7000 r/min

    Compression ratio

    11.25:1

    Fuel system

    EFI

    Valve train

    SOHC

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Liquid-cooled

    Ignition

    T.C.I.

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Perimeter

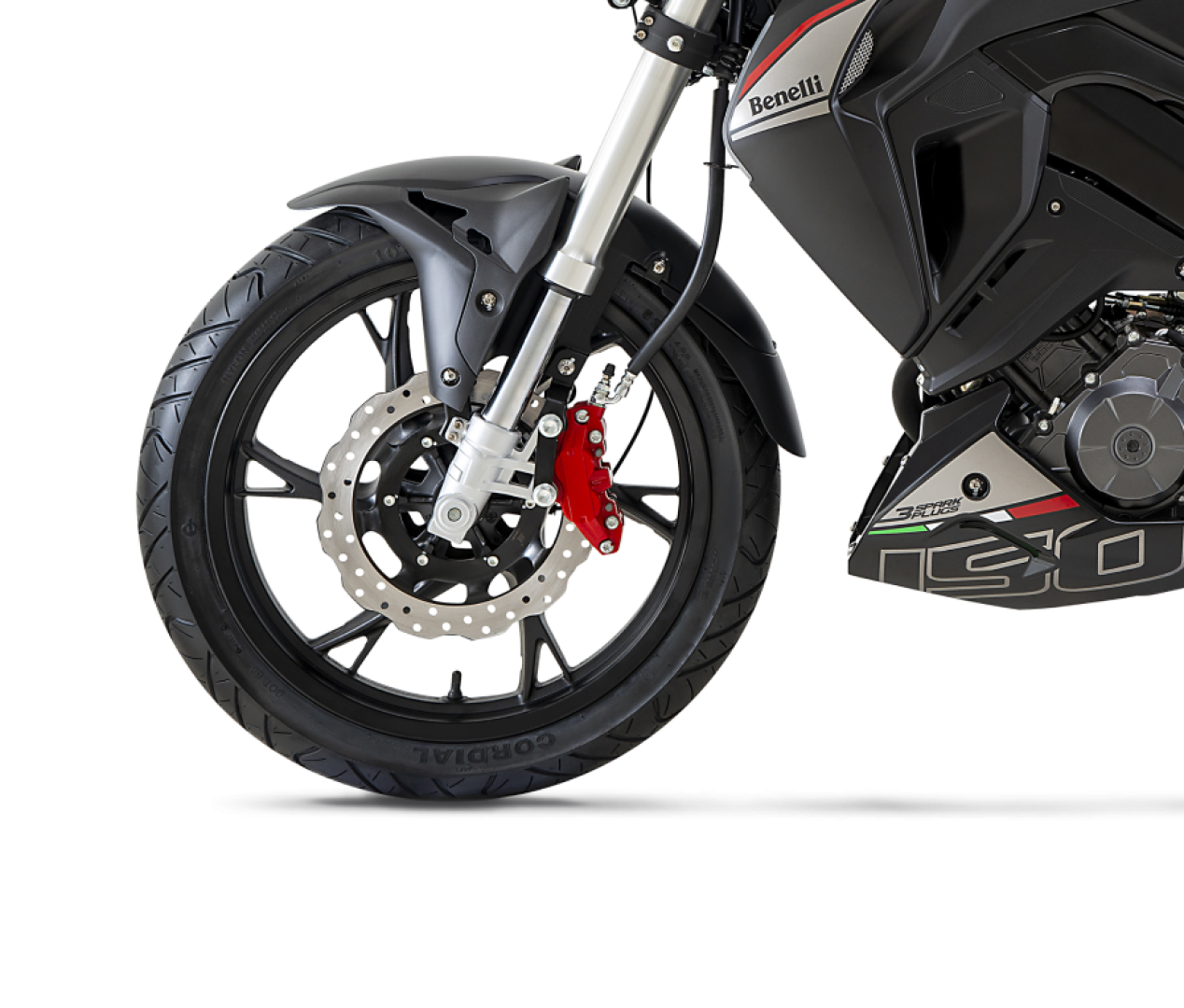

    Front wheel

    Aluminum alloy

    Front suspension travel (mm)

    110

    Front tyre

    100/80-17

    Front brake

    Disc

    Front brake diameter (mm)

    260

    Rear wheel

    Aluminum alloy

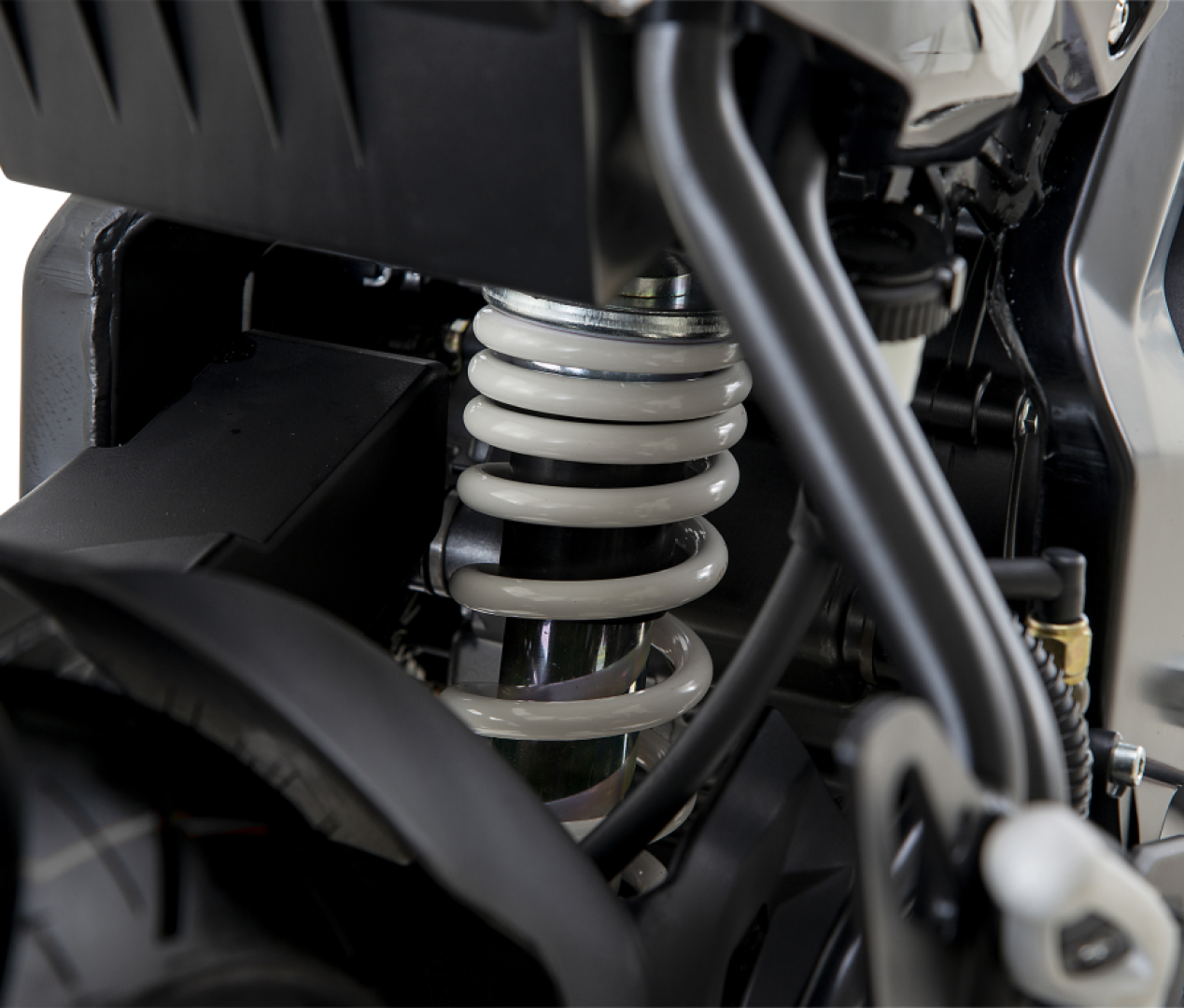

    Rear suspension

    Pro-link Mono shock-absorber

    Rear suspension travel (mm)

    50

    Rear tyre

    130/70-17

    Rear brake

    Disc

    Rear brake diameter (mm)

    220

  • Dry weight (kg)

    147

    Seat height (mm)

    810

    Overall length (mm)

    2030

    Overall width (mm)

    780

    Overall height (mm)

    1070

    Ground clearance (mm)

    170

    Wheelbase (mm)

    1345

    Fuel capacity (L)

    10

    Top speed (km/h)

    105

    Max load (kg)

    185

    Battery

    12V6Ah
