Prezzo (f.c.)

N/A

Potenza Massima

9.4kW at 9500 r/min

COPPIA MASSIMA

10N·m/8500 r/min

Peso a secco (KG)

N/A

Caratteristiche principali

Specifiche tecniche

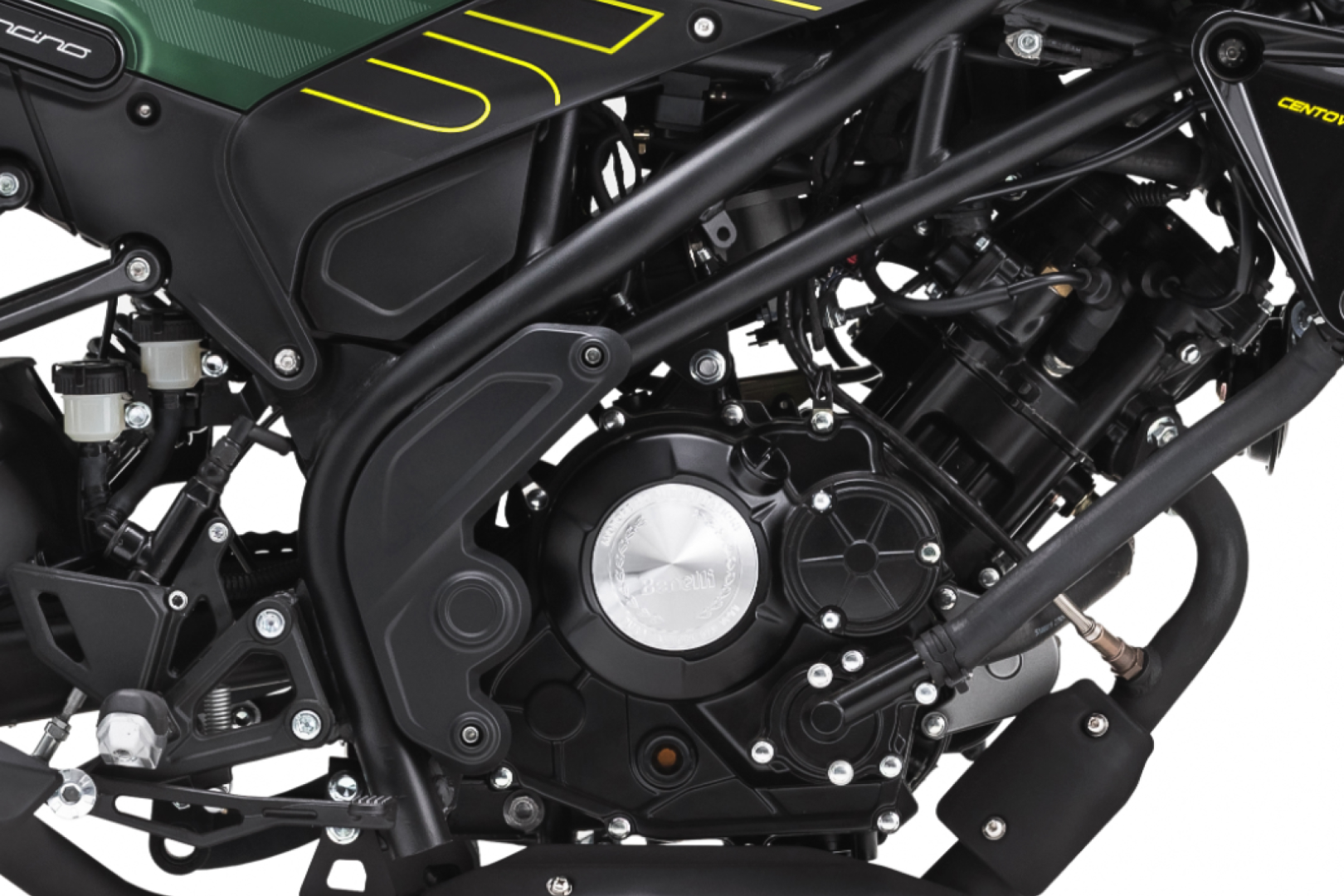

  • TYPE

    1-cylinder/4-stroke/4-valve

    Displacement (cc)

    125

    Bore x Stroke (mm)

    ø54×54.5

    Power

    9.4kW at 9500 r/min

    Max torque

    10N·m/8500 r/min

    Compression ratio

    11.6:1

    Fuel system

    EFI

    Valve train

    SOHC

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Liquid-cooled

    Ignition

    T.C.I.

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Steel trellis frame

    Front wheel

    Aluminum alloy

    Front suspension travel (mm)

    125

    Front tyre

    100/80-17

    Front brake

    Disc

    Front brake diameter (mm)

    280

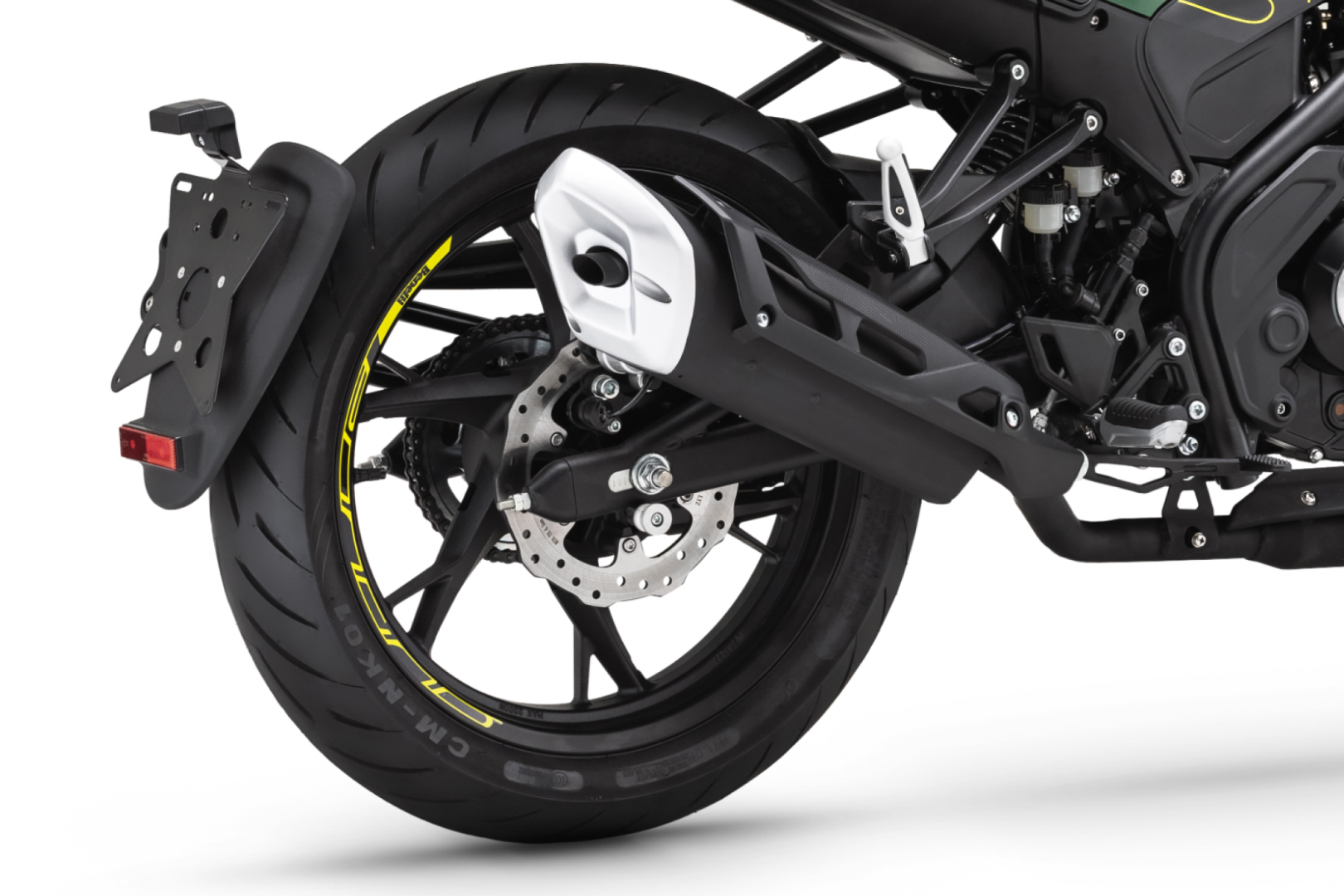

    Rear wheel

    Aluminum alloy

    Rear suspension

    Mono-shock-absorber

    Rear suspension travel (mm)

    60

    Rear tyre

    130/70-17

    Rear brake

    Disc

    Rear brake diameter (mm)

    220

  • Dry weight (kg)

    137

    Seat height (mm)

    800

    Overall length (mm)

    2030

    Overall width (mm)

    840

    Overall height (mm)

    1115

    Ground clearance (mm)

    185

    Wheelbase (mm)

    1370

    Fuel capacity (L)

    12.5

    Top speed (km/h)

    99

    Max load (kg)

    185

    Battery

    12V6Ah
