Price From

N/A

Power

51.5kW at 8000 r/min

Max. Torque

70Nยทm/6000 r/min

Dry Weight (KG)

222

Tech Specs

  • TYPE

    2-cylinder/4-stroke/8-valve

    Displacement (cc)

    698

    Bore x Stroke (mm)

    รธ83ร—64.5

    Power

    51.5kW at 8000 r/min

    Max torque

    70Nยทm/6000 r/min

    Compression ratio

    11.6:1

    Fuel system

    EFI

    Valve train

    DOHC

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Liquid-cooled

    Ignition

    T.C.I.

    Emissions (CO2)

    107 g/km (35 kW: 99 g/km)

    Consumption

    4,6 l/100km (35 Kw: 4,3 l/100 km)

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Steel trellis frame

    Front wheel

    Spokes

    Front suspension travel (mm)

    140

    Front tyre

    110/80 R19

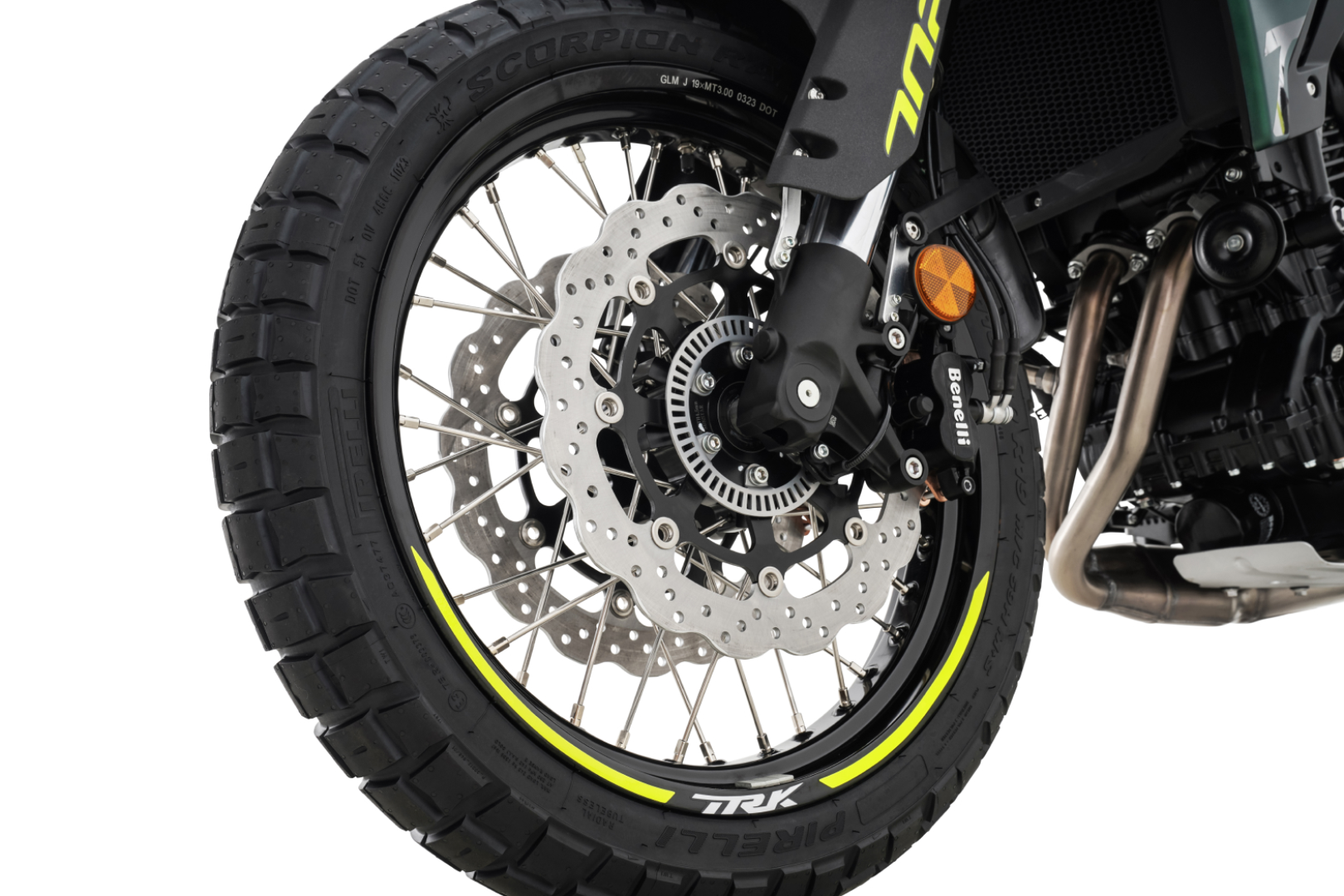

    Front brake

    Dual discs

    Front brake diameter (mm)

    320

    Rear wheel

    Spoke

    Rear suspension

    Mono-shock-absorber

    Rear suspension travel (mm)

    33

    Rear tyre

    150/70 R17

    Rear brake

    Disc

    Rear brake diameter (mm)

    260

  • Dry weight (kg)

    222

    Seat height (mm)

    830

    Overall length (mm)

    2220

    Overall width (mm)

    925

    Overall height (mm)

    1420

    Ground clearance (mm)

    210

    Wheelbase (mm)

    1505

    Fuel capacity (L)

    20

    Top speed (km/h)

    180

    Max load (kg)

    197

    Battery

    12V11.2Ah
