Cena od

N/A

Moc

35kW at 7000 r/min

Maks. Moment obrotowy

50.3N·m/6500 r/min

Waga sucha (KG)

224

Specyfikacja techniczna

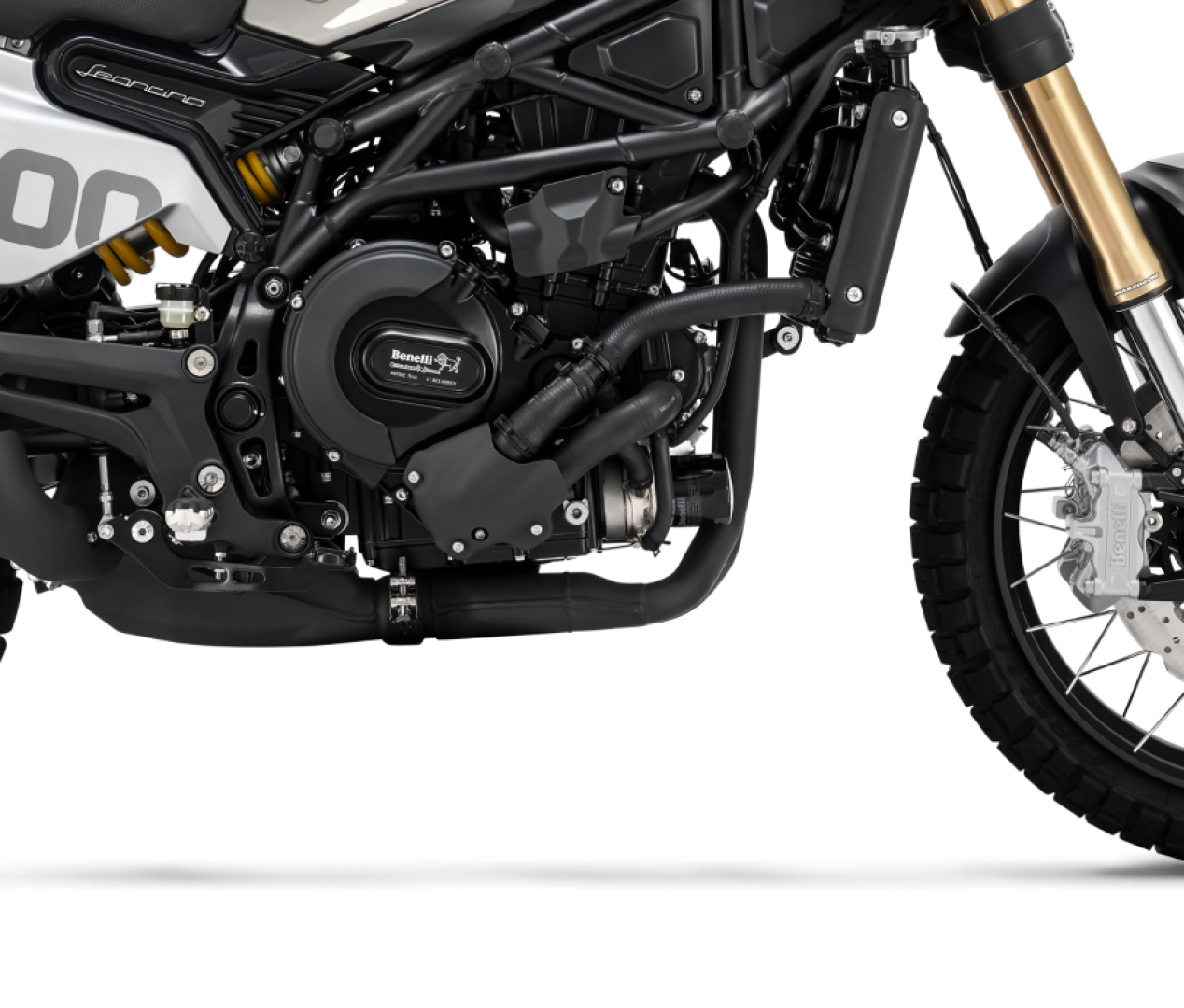

  • TYPE

    2-cylinder/4-stroke/8-valve

    Displacement (cc)

    754

    Bore x Stroke (mm)

    ø88×62

    Power

    35kW at 7000 r/min

    Max torque

    50.3N·m/6500 r/min

    Compression ratio

    11.5:1

    Fuel system

    EFI

    Valve train

    DOHC

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Liquid-cooled

    Ignition

    T.C.I.

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Steel trellis frame

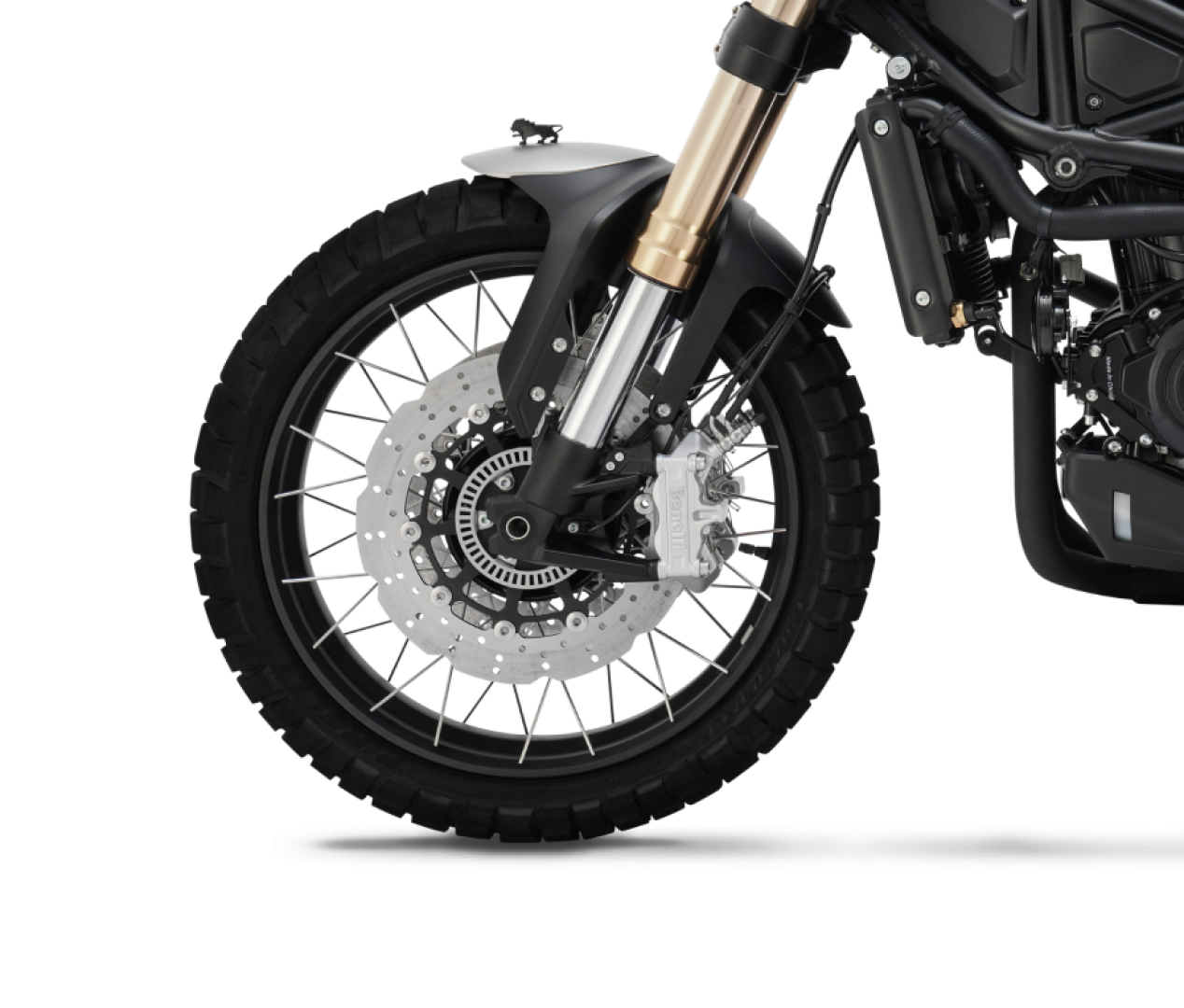

    Front wheel

    Spokes

    Front suspension travel (mm)

    148

    Front tyre

    120/70 R19 M/C

    Front brake

    Dual discs

    Front brake diameter (mm)

    320

    Rear wheel

    Spoke

    Rear suspension

    Mono-shock-absorber

    Rear suspension travel (mm)

    53

    Rear tyre

    170/60 R17 M/C

    Rear brake

    Disc

    Rear brake diameter (mm)

    260

  • Dry weight (kg)

    224

    Seat height (mm)

    825

    Overall length (mm)

    2200

    Overall width (mm)

    870

    Overall height (mm)

    1210

    Ground clearance (mm)

    195

    Wheelbase (mm)

    1480

    Fuel capacity (L)

    15

    Top speed (km/h)

    145

    Max load (kg)

    183

    Battery

    12V11Ah
